CCT Controller ZigBee compatible

item ID: ZLL-9103
GTIN: 4260567170042
SKU: GL-C-006

Dimmer and controller unit for CCT lighting control
to switch between warm white and daylight white light.
Also for Zigbee lighting control of single-color LED lighting.

light version CCT tuneable white: Dimming / Single Color

CCT tuneable white

RGBW 1ID

RGBW 2ID

RGBCCT

27,99 €

including VAT* , plus (Standard)

Available immediately
Delivery time: 2 - 3 Workdays (Other countries)

Description

Control unit LED lighting controller ZigBee Light Link (ZLL) compatible

Control unit compatible with ZigBee gateways such as Philips Hue®, Homee, Amazon Echo Plus and others

This generation of control devices worked with the ZigBee ZLL standard and are therefore compatible with many common ZigBee hubs / gateways, please note the information on compatibility.

These controllers can be used to control all common types of LED products that work on a 12-24 volt DC basis. This makes it suitable for LED stripes, LED spotlights, LED outdoor or pool lighting.
The LED lighting is switched on / off and dimmed by the ZigBee light control.

The controls are there for
- Switch monochrome lighting to ON / OFF and dim
- CCT color temperature for light strips that alternate between warm and cold white tones
- RGBW with 1ID for systems like Homee or Alexa Echo Plus (cannot process a 2 ID)
- RGBW with 2ID for systems like Philips HUE that process 2ID
- RGBCCT for light strips with 5in1 LEDs or RGB and CCT LEDs

Smarthome with ZLL control units from GLEDOPTO

Depending on the gateway and other accessories (buttons / sensors), timers and routines can be created.
Let yourself be woken up in the morning with a "sunrise" or let the path light up automatically.
Several scenes can be displayed using the room or group controls.

With the control devices from GLEDOPTO, individual lengths of light strips can be used as well as strips with a higher LED density as a "ready-made solution". So you remain flexible and only adjust the power supply according to the power of the strip.

Dimmer / CCT LED Controller Controller ZigBee Light Link (ZLL) compatible

Color Temperature Change Controller compatible with ZigBee such as Philips Hue®, Osram Lightify®, Ikea Tradfri®, Amazon Echo Plus

This new generation of the CCT controller works with the ZigBee ZLL standard and is thus compatible with many common ZigBee hubs / gateways, please note the compatibility instructions.

This controller provides a controller for CCT (color temperature change) LED products.
You can use this control unit to control CCT LED Stripes, so you can always set your desired white tone. With the appropriate app, it is also possible to adjust the white tone of the corresponding time of day.

All common types of LED products that work on a 12-24 Volt basis can be controlled with this controller. This makes it suitable for LED Stripes, LED recessed spotlights, LED outdoor or pool lighting.

With this ballast for ZigBee Lichtsteuerng can of course also single-color LED lighting switched on / off and dimmed.

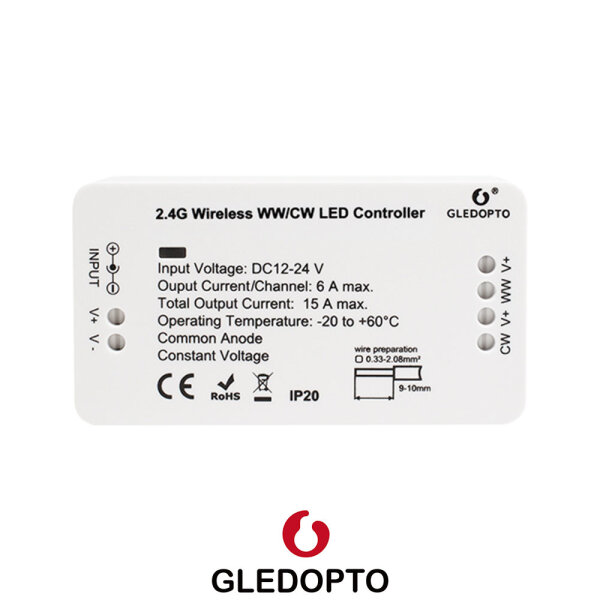

Technical data for the CCT control unit ZigBee compatible

Input voltage	DC 12-24 Volt
Output current per channel	6 Ampere
Output current total max	15 Ampere
Protection class	IP20
Working temperature	-20°C bis 60°C
Dimensions	23,5x48x89 mm
Constant voltage
Common anode
