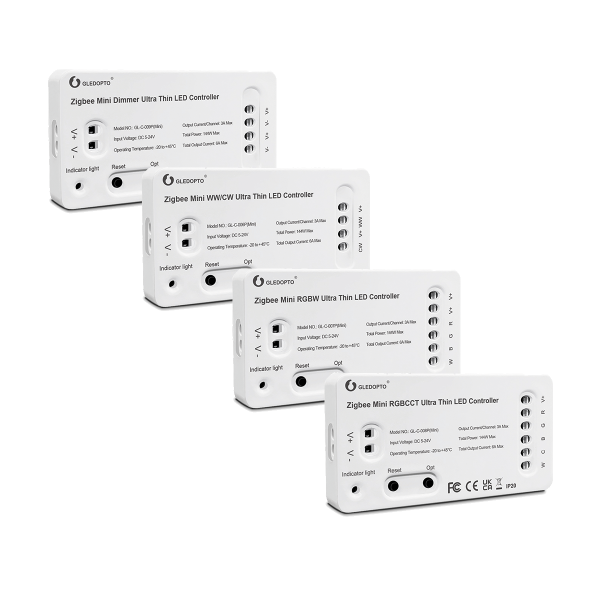

Mini (Thin) controller ZigBee 3.0 and MiBoxer compatible
Control device compatible with ZigBee 3.0 such as Philips Hue®, Osram Lightify®, Amazon Echo Plus as well as MiLight remote controls / wall switches
This smaller version of the PRO controller works with ZigBee 3.0 and is therefore compatible with many popular ZigBee hubs/gateways, please refer to the compatibility notes.
In addition, it can be controlled with the well-known matching remote controls and wall switches from MiLight/MiBoxer.
You can control with this controller (depending on the variant) the latest generation of LED strips with 5in1 chips, 4 chip, CCT or single color LEDs. So you can connect any LED lighting with 5V-12V-24VDC,
such as LED strips, LED recessed spotlights, LED outdoor or pool lighting.
Through the ZigBee lighting control, the LED lighting is turned on/off and dimmed, you can also use the remote controls / wall switches of MiLight / MiBoxer.
- Dimmer for single color LEDs
CCT for color changing LEDs (tuneable white)
RGB+W for color changing LEDs with separate white tone
RGBCCT for color changing LEDs with CCT control
Notes on compatibility
The controller is compatible with most ZigBee ZLL and ZigBee 3.0 gateways.
It has been tested with Philips Hue®, Osram Lighify®, Amazon Echo Plus.
Cable cross section for input and output 0.205-0.823mm² or AWG24-18.
If you want to protect the ZigBee controller indoors and outdoors from touch, dirt and light moisture, you can either use a gray terminal box or the protective housing article 6279.
Maximum power at max. 6 amps
You can operate at 24VDC maximum 144W at the control unit,
at 12VDC maximum 72W and at 5VDC maximum 30W.
