RGB + CCT Controller Controller ZigBee Light Link (ZLL) compatible
RGB + color temperature change controller compatible with ZigBee such as Philips Hue®, Osram Lightify®, Ikea Tradfri®, Amazon Echo Plus
This new generation of the RGB + CCT controller works with the ZigBee ZLL standard and is thus compatible with many common ZigBee hubs / gateways, please note the compatibility instructions.
This controller provides a controller for RGB and CCT (color temperature change) LED products in one.
With this controller you can control the latest generation of LED strips with 5in1 chips (Warm White + Red + Green + Blue + White) or even two bands with RGB and CCT. You can thus set any white tone or any color. That means that they can not be lit up at the same time. With this control and the matching LED band you have an alternative to the Philips Hue LightStrip +.
All common types of LED products that work on a 12-24 Volt basis can be controlled with this controller. This makes it suitable for LED Stripes, LED recessed spotlights, LED outdoor or pool lighting.
The ZigBee lighting control switches the LED lighting on / off as well as dimmed.

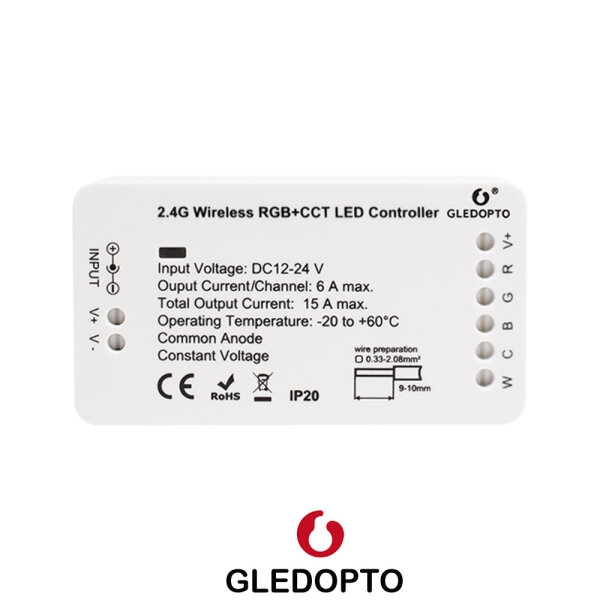

Technical data for the RGB + CCT control unit ZigBee compatible
| Input voltage |
DC 12-24 Volt |
| Output current per channel |
6 Ampere |
| Output current total max |
15 Ampere |
| Protection class |
IP20 |
| Working temperature |
-20°C bis 60°C |
| Dimensions |
23,5x48x89 mm |
| Constant voltage |
|
| Common anode |
|
Notes on compatibility
The controller is compatible with most ZigBee ZLL and ZigBee 3.0 gateways.
He was tested with Philips Hue®, Osram Lighify®, Amazon Echo Plus.
