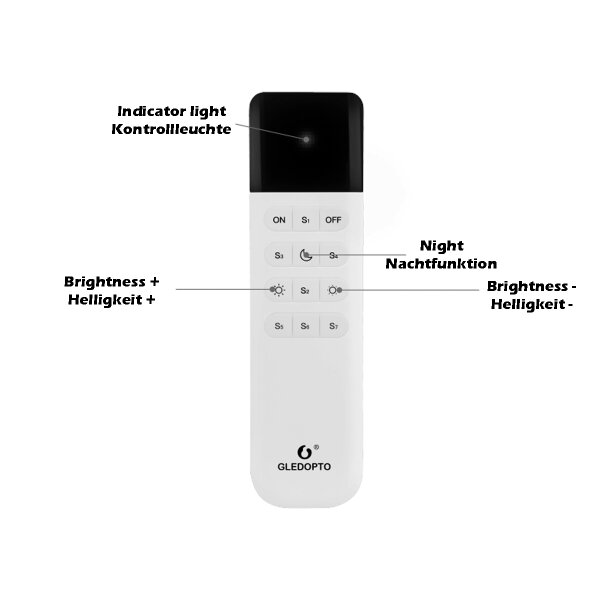

Convenient wireless control for WLED lighting systems
The GL-RC-002WL is a compact WiFi remote control designed for direct operation of compatible WLED controllers via the ESP-NOW protocol. It enables instant switching, smooth brightness adjustment and quick access to stored lighting presets without the need for a smartphone or app.
An automatic sleep mode reduces power consumption, while the durable PC housing ensures reliable indoor operation.
Technical Specifications – WLED WiFi Remote Control
- Model: GL-RC-002WL
- Input voltage: 3 V
- Battery type: 2 × AAA (1.5 V)
- Standby current: <13 µA
- Wireless protocol: WiFi (ESP-NOW)
- Control distance: up to 50 m
- Material: PC
- Ingress protection: IP20
- Operating temperature: −20 °C to +45 °C
- Dimensions: 39 × 16 × 143 mm
FAQ – GL-RC-002WL Remote Control
Which controllers are supported?
The remote is compatible with WLED controllers that support ESP-NOW. WLED firmware version 0.14.0-beta3 or newer is required.
How are preset buttons configured?
Presets are saved in the WLED web interface. Preset ID 1 corresponds to S1, ID 2 to S2, and so on.
What is night mode?
Night mode instantly reduces brightness to the lowest level for subtle ambient lighting.
Why do some buttons not work?
Buttons S5, S6 and S7 only function with specially customized GLEDOPTO controllers.
How is battery life optimized?
The remote automatically enters sleep mode after approximately two seconds of inactivity.
Product safety information
Manufacturer information:
GLEDOPTO CO., LTD
F2 Bldg #1, Wanda Industrial Park, No.56 Baolong Hi-Tech Avenue, Baolong street
Shenzhen, China, 518116
sales@gledopto.com
https://gledopto.com
Responsible person:
LED Trading
Schöneicher Straße 42
Brandenburg
Schöneiche, Deutschland, 15566
info@led-trading.de
https://www.led-trading.de
| Item information |
Value |
| product type: |
remote |
| Controll: |
2.4G WiFi WLAN |
| LED Control: |
|
| Shipping weight: |
0,06 kg
|
| Item weight: |
0,06 kg
|
