Contactless Control for WLED & GLEDOPTO LED Controllers

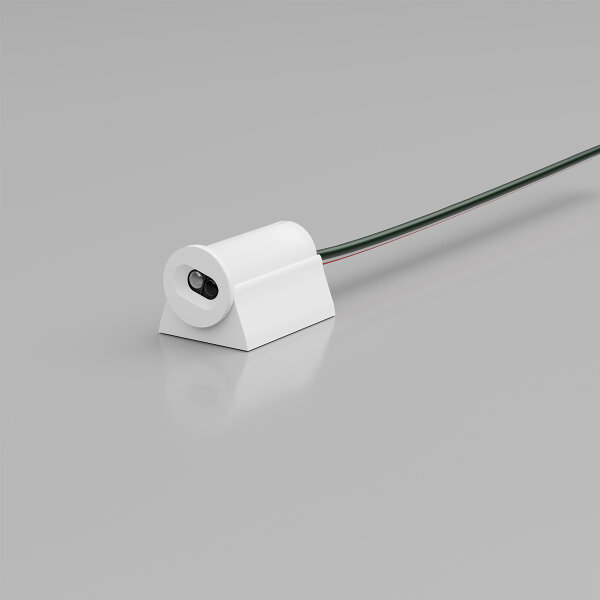

The GLEDOPTO IR motion sensor (GL-SW-001) is a compact infrared gesture sensor designed
for contactless LED control. It is optimized for WLED-enabled ESP32 controllers
and compatible GLEDOPTO LED controllers.
Instead of classic motion detection, the sensor reacts to intentional hand movements
close to the sensor. This makes it ideal for furniture lighting, shelves, kitchens,
display cabinets and smart furniture projects.
Functions & Control Logic
- Quick hand swipe: LED on / off
- Extended occlusion: smooth brightness control
- Fully contactless infrared gesture detection
- Digital HIGH / LOW signal output
When occlusion is detected, the sensor outputs a LOW signal;
when clear, it outputs a HIGH signal.
All logic such as switching, dimming or scenes is handled by the connected
WLED controller.
Technical Specifications
- Input voltage: DC 5 V / 12 V / 24 V
- Current consumption: max. 5 mA
- Signal type: digital (DATA)
- Connections: VCC / GND / DATA
- Cable length: approx. 50 cm
- Wire gauge: 22 AWG
- Housing: flame-retardant PC
- Operating temperature: −20 °C to +45 °C
Compatibility & Use Cases
- Perfect as GPIO input for WLED (ESP32)
- Compatible with selected GLEDOPTO LED controllers
- Ideal for DIY projects and smart furniture lighting
Important: This is not a classic PIR motion detector.
It is a short-range IR gesture sensor designed for intentional, manual light control,
not automatic presence detection.
