RGB + color temperature change control device compatible with ZigBee 3.0 such as Philips Hue®, Osram Lightify®, Amazon Echo Plus and MiLight remote controls / wall switches
This new generation of the RGB + CCT control device works with ZigBee 3.0 and is therefore compatible with many common ZigBee hubs / gateways, please note the information on compatibility. In addition, it can be controlled with the well-known RGBCCT remote controls and wall switches from MiLight / MiBoxer. This controller offers a control for RGB and CCT (color temperature change) LED products in one. With this control unit you can control the latest generation of LED strips with 5in1 chips (warm white + red + green + blue + white) or two strips with RGB and CCT each. You can set any white tone as well as any color. With this control and the matching LED strip you have an alternative to the Philips Hue LightStrip +. All common types of LED products that work on a 12-24 volt basis can be controlled with this controller. This makes it suitable for LED stripes, LED recessed spotlights, LED outdoor or pool lighting. The ZigBee light control switches the LED lighting on / off and dimmed it; you can also use the remote controls / wall switches from MiLight.
Notes on compatibility
The controller is compatible with most ZigBee ZLL and ZigBee 3.0 gateways. It was tested with Philips Hue®, Osram Lighify®, Amazon Echo Plus. Scope of delivery depending on the set- individually with remote control- with wall switch

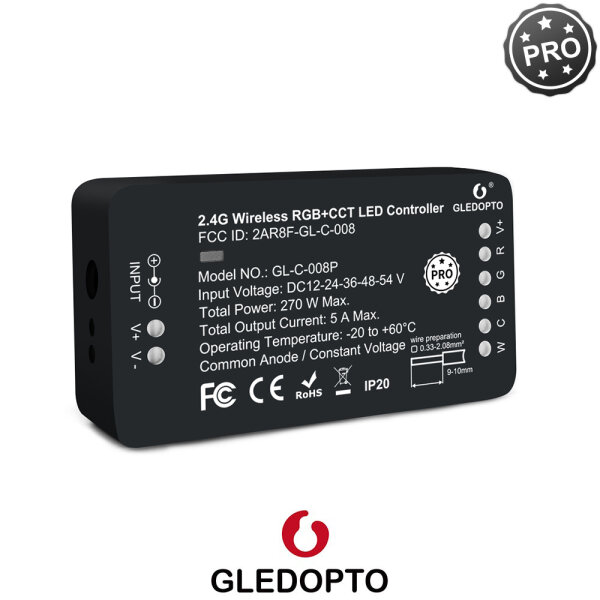

Technical data compatible with the RGB + CCT control unit ZigBee
| Input voltage |
DC 12-24-36-48-54 Volt |
| Output current total max |
5 Ampere |
| Protection class |
IP20 |
| Working temperature |
-20°C bis 60°C |
| Dimensions |
23,5x48x89 mm |
Product safety information
Manufacturer information:
GLEDOPTO CO., LTD
F2 Bldg #1, Wanda Industrial Park, No.56 Baolong Hi-Tech Avenue, Baolong street
Shenzhen, China, 518116
sales@gledopto.com
https://gledopto.com
