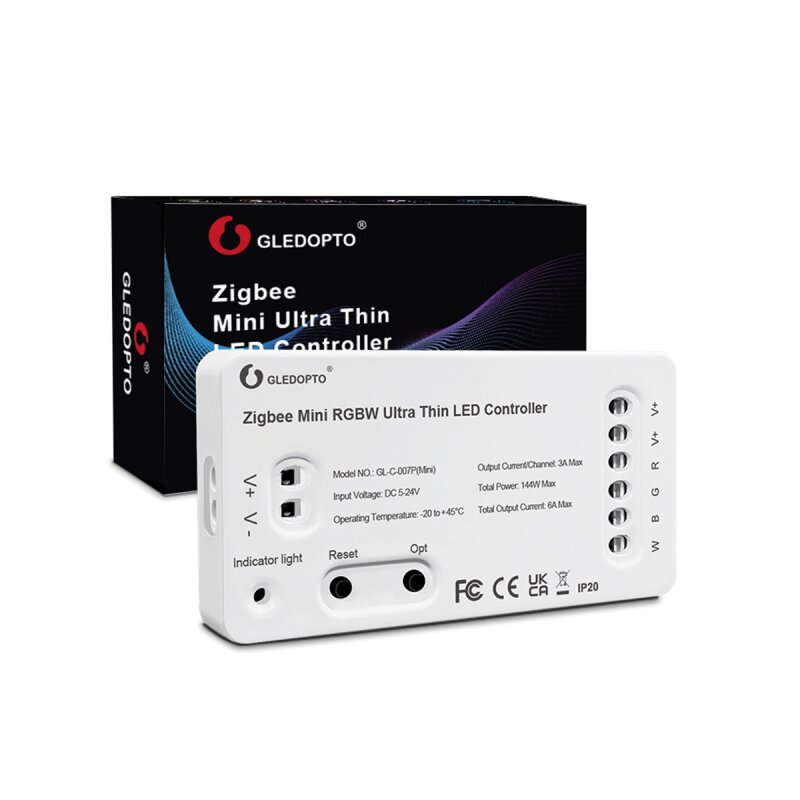

Mini (Thin) controller ZigBee 3.0 and MiBoxer compatible
Control device compatible with ZigBee 3.0 such as Philips Hue®, Osram Lightify®, Amazon Echo Plus as well as MiLight remote controls / wall switches
This smaller version of the RGBW PRO controller works with ZigBee 3.0 and is therefore compatible with many popular ZigBee hubs/gateways, please refer to the compatibility notes.
In addition, it can be controlled with the well-known matching remote controls and wall switches from MiLight/MiBoxer.
You can control with this controller (depending on the variant) the latest generation of LED strips with RGBW LEDs. So you can connect any LED lighting with 5V-12V-24VDC,
such as LED strips, LED recessed spotlights, LED outdoor or pool lighting.
Through the ZigBee lighting control, the LED lighting is turned on/off and dimmed, you can also use the remote controls / wall switches of MiLight / MiBoxer.
Versions
- RGB+W for color changing LEDs with separate white tone
Notes on compatibility
The controller is compatible with most ZigBee ZLL and ZigBee 3.0 gateways.
It has been tested with Philips Hue®, Osram Lighify®, Amazon Echo Plus.
Cable cross section for input and output 0.205-0.823mm² or AWG24-18.
If you want to protect the ZigBee controller indoors and outdoors from touch, dirt and light moisture, you can either use a gray terminal box or the protective housing article 6279.
Maximum power at max. 6 amps
You can operate at 24VDC maximum 144W at the control unit,
at 12VDC maximum 72W and at 5VDC maximum 30W.
Product safety information
Manufacturer information:
GLEDOPTO CO., LTD
F2 Bldg #1, Wanda Industrial Park, No.56 Baolong Hi-Tech Avenue, Baolong street
Shenzhen, China, 518116
sales@gledopto.com
https://gledopto.com
Responsible person:
LED Trading
Schöneicher Straße 42
Brandenburg
Schöneiche, Deutschland, 15566
info@led-trading.de
https://www.led-trading.de
| product type: |
|
| Color: |
RGBWRGBWW |
| Voltage: |
5 Volt12V DC24 Volt |
| kind of current: |
direct current |
| Shipping weight: |
0,04 kg
|
| Item weight: |
0,04 kg
|
| Leistungsaufnahme: |
144.00 Watt
|
dimensions |
| Breite: |
36 mm
|
| length |
70 mm
|
| high |
10 mm
|
