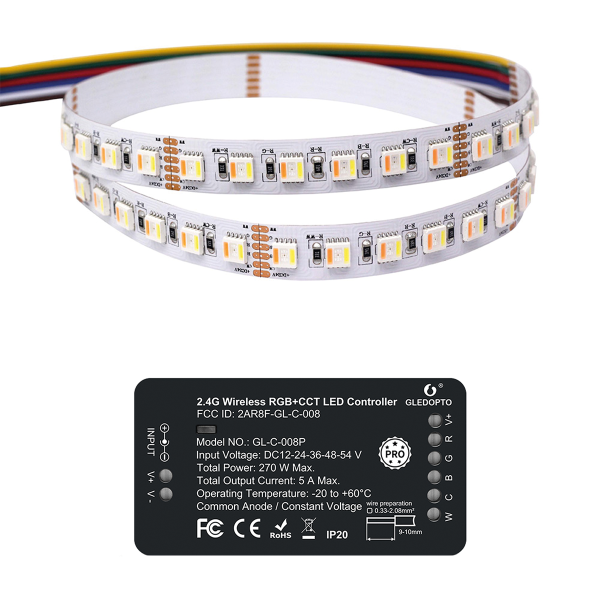

RGB + CCT set control unit and 5 meter LED Stripe compatible with 96 LED / m ZigBee Light Link (ZLL)
RGB + color temperature change controller and 5 meter LED Stripe compatible with ZigBee such as Philips Hue®, Osram Lightify®, Ikea Tradfri®, Amazon Echo Plus
Here we offer you the new generation of the RGB + CCT control unit which works with the ZigBee ZLL standard plus a RGB + CCT (WRGBWW) Stripes as a set.
This set is compatible with many popular ZigBee hubs / gateways, please note the compatibility instructions.
With this set you can adjust the light from warm white to cold white, but at the same time you have the possibility to choose a colorful color like red, green, blue and their mixture. Very similar to the Philips Hue LightStripe Plus®, but with more LED per meter, so more brightness and a more even illumination.
Important Note:
For this LED strip we recommend the use in an aluminum profile. Since the high number of LEDs can lead to a higher heat development.
Also, in order to obtain a uniform light image when using more than 3 meters in one piece, bilateral feed of the current is recommended.
Notes on compatibility
The controller is compatible with most ZigBee ZLL and ZigBee 3.0 gateways.He was tested with Philips Hue®, Osram Lighify®, Ikea Tradfri®, Amazon Echo Plus.
| product type: | start sets |
| Voltage: | 24 Volt |
| Protection class: | IP20 |
| kind of current: | direct current |
| Shipping weight: | 1,72 kg |
| Product weight: | 1,37 kg |
| power consumption: | 163.00 Watt |
| Lumen: | 4010 Cold white 3135 Warm white lm |
| light power per meter: | 802 Cold white 627 Warm white lm/m |
| power: | 32,6 W/m |
| color temperature: | 2400-6000 Kelvin |
| average duration of life: | 30.000 hour |
| cycle of operation: | 100000 |
| turn on time: | under 1 second |
| width: | 48 Controller 12 Stripe 69 Power supply mm |
| length: | 89 Controller 5000 Stripe 210 Power supply mm |
| height: | 23,5 Controller 2,2 Stripe 44 Power supply mm |
This product consists of
